t: tree spacing (m) – Enter value (admit decimals)
r: row spacing (m) – Enter value (admit decimals)
h: canopy height (m) – Select one of the proposed intervals
w: crosswise mid-width of canopy (m) – Select one of the proposed intervals

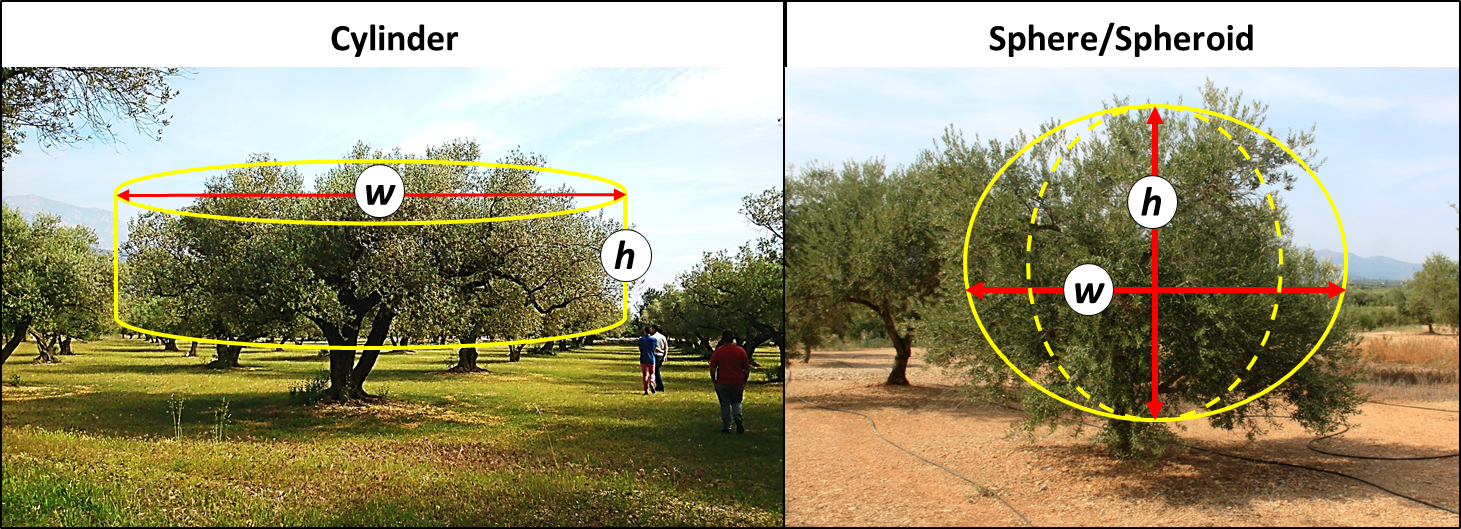

h: canopy height (m) – Select one of the proposed intervals
w: mid-width of canopy (m) – Select one of the proposed intervals

Select one of the proposed types. Sprayer determines the efficiency of the application. See the efficiency value for different types of sprayer in the section DOCUMENTS from the home page.

Once the choice is made, sprayer is qualified by a colour depending on its efficiency.

Fruit, almond, olive in hedgerow

Standard

Deflectors

Citrus

Standard

Isolated trees orchards

Standard

Grapes

Standard

Deflectors

Multi spout

Vertical booms

Recycling tunnel

Select from one of the proposed intervals.

Enter value

The plant density is calculated from above values using the following expression: 10000 / (tree spacing * row spacing).

Leaf area index (LAI) is a dimensionless value defined as the one-sided green leaf area per unit ground surface area (ha/ha). Its value is estimated from the row spacing, the canopy height, the crosswise mid-width of canopy and the growth stage. In the section DOCUMENTS from the home page is a document which explains the procedure for the calculation of the LAI from the aforementioned parameters.

1 full row

2 full rows

3 full rows

Enter the maximum capacity of the main sprayer tank in litres (no decimals).

Select the option better representing the orchard.

Enter a commercial name or active ingredient or registration number (only authorized in Spain).

Enter the dose value and select the dose expression system: "(%) concentration", "product (kg or L per ha)", o "kg or L per 10.000 m2 de leaf wall"

Forward speed

DOSA3D determines the dose assuming that forward speed is necessarily in the recommended range. Forward speed upper recommended values can reduce the pesticide deposition mainly in the canopy internal zone.

Recommended forward speed

Fruits and grapes: 5.0 km/h (max. 7.0 km/h)
Almonds and olives in hedgerow: 5.0 km/h (max. 7.0 km/h)
Citrus: 1.5 – 3.0 km/h (max. 5.0 km/h)
Isolated trees (olives in goblet): 2.0 – 3.0 km/h (max. 5.0 km/h)

Weather conditions

DOSA3D determines the dose assuming that weather conditions are necessary for the following recommended ranges:

Temperature: 10-20ºC (never spray at less than 5ºC and upper 30ºC)
Humidity: 35-80% (never spray in rain or fog conditions)
Wind speed: lower than 1 m/s (never over 3 m/s or in the direction of risk areas as residences, routes, and surface waters)

Information on the weather forecast of your locality

Catalunya - METEOCAT www.meteo.cat/prediccio/municipal
España - AEMET www.aemet.es/es/portada
Belgique / België www.meteobelgique.be
Deutschland – WETTER DE www.wetter.de/deutschland
France - METEOFRANCE www.meteofrance.com
Hellas – ENMS www.meteo.gr
Italia – METEO ITALIA www.meteo.it
Nederland - BUIENRADAR www.buienradar.nl
Polska ICM - www.meteo.pl
Portugal – IPMA www.ipma.pt
Suïsse / Schweiz – METEOSUISSE www.meteosuisse.admin.ch/home/meteo/previsions.html

For more information

Guidelines for sprayer calibration
Advice for bush and tree crop sprayer adjustment

You must be registered to save the calculations

Crop

* Crop

Variety

Orchard identification (name)

* Crop area to be sprayed (ha)

* Tree spacing (m)

* Row spacing (m)

Canopy shape

* Canopy height (m)

* Crosswise Mid-width of canopy (m)* Mid-width of canopy (m)

* Growth stage

Canopy density

Plant density (tree/ha)

Leaf area index (LAI) (assessed)

(-)

Leaf wall area (maxim value) - LWA (m²/ha):

Tree row volume (maxim value) - TRV (m³/ha):

Tree volume rate (m³/ha)

Pest o disease to be controlled

* Pest o disease to be controlled

Plant protection equipment

* Sprayer type

* Main tank capacity (L)

* Rows treated simultaneously

Operation parameters and weather forecast

Forward speed

Temperature

Relative humidity

Wind speed

Product to be used

Product name / register number

* Recommended dose (label or technical specifications)

Select nozzles

You must be registered to save the calculations

Result DOSA3D

Application efficiency (%):

Minimum recommended volume rate (L/ha):

Minimum recommended volume rate per tree (L/tree):

Product amount and number of tanks to be sprayed

Product concentration in the tank (%):

Product per tank (kg or L):

Total amount of product to be applied (kg or L):

Number of tanks to be sprayed:

Equivalence between dose expression systems

Ground dose (kg or L/ha):

LWA Dose (kg or L/10.000 m²):

TRV Dose (kg or L/10.000 m³):

Data can be modified and calculate once again
